Products

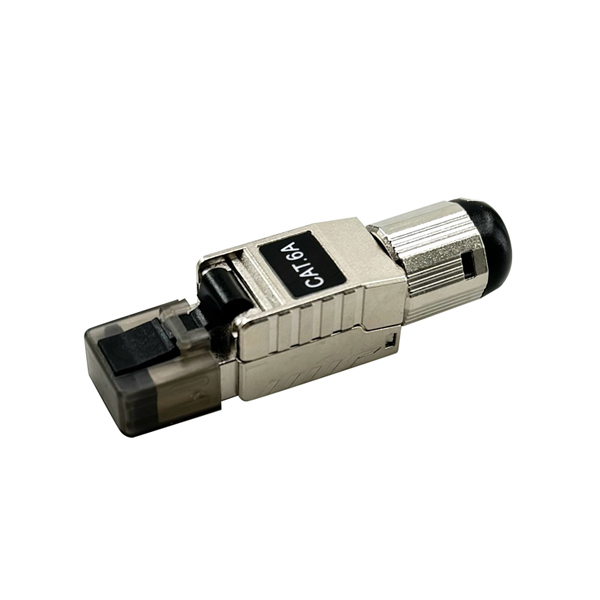

FTP PLUG

Product Parameters

Plug: Polycarbonate (PC) 94-V2
Housing: Zinc die-Casting with nickel plated
Terminal:Phosphor Bronze / 50u" gold plating
Cover: Zinc die-casting with nickel plated
management bar: PC+glass fiber white color UL94-V2
Fire Rating: 94-V2 or 94-V0
Standard: Comply with FCC Part 68 standard
Meet reliability test based on IEC 60603-7
Electrical: Rated Current: 250 VAC @2 Amps
Contact Resistance: 20m Ω Max.
Insulation Resistance: 500M Ω Min.
Voltage Proof: 1000 VAC
Mechanical:Insertion Force & Withdrawal Force: 20N Max.
Cable-to-Plug Tensile Strength: 20 Pound Min.
Durability: 1500 mating cycles
