Product Parameters
Features:

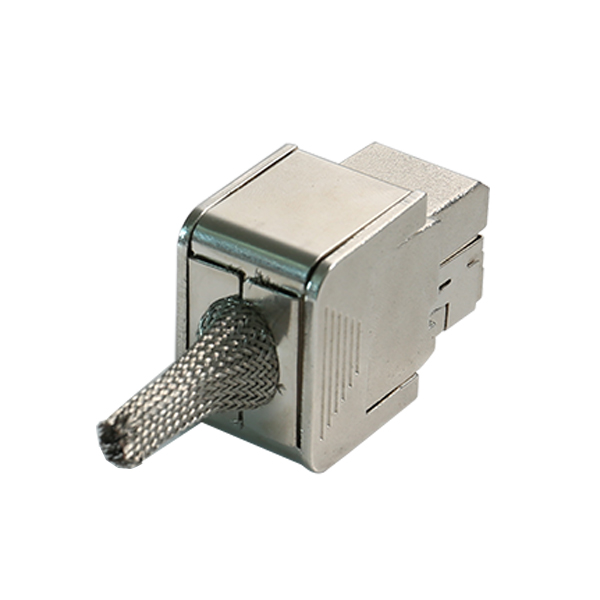

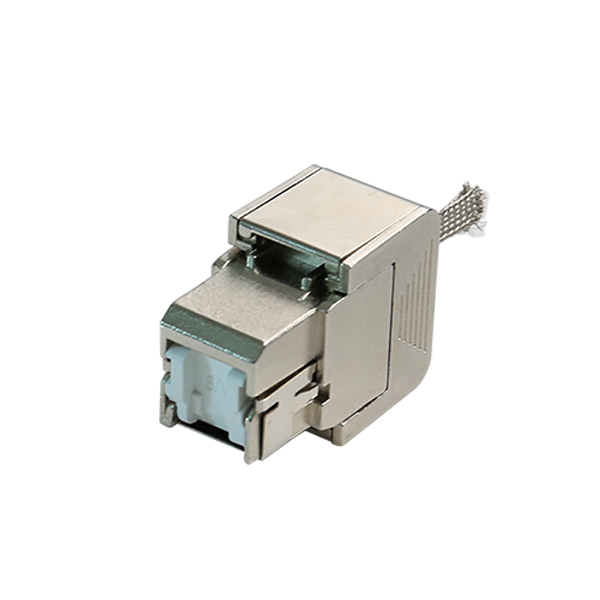

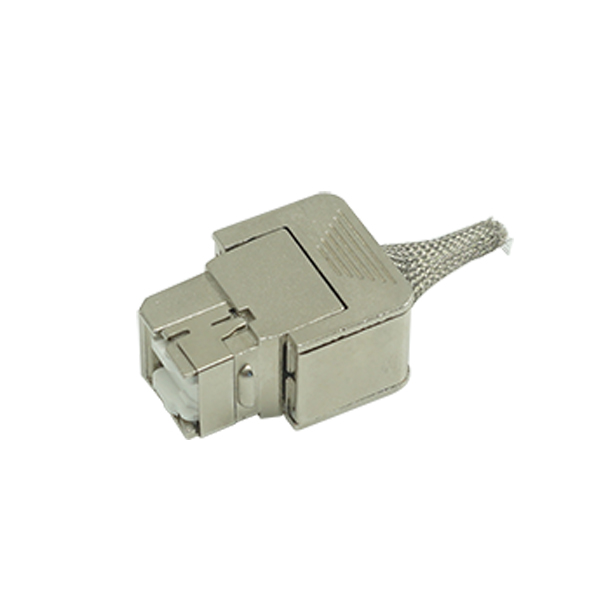

The toolless Jack style provide category 6A system performanceand user-friendly installation features. A shielded is available to maximum protection from EMI/RFI
Allow rj45 plugs to provide high-density solutions.
Housing: High-impact Flame Retardant Polycarbonate,UL94V-0
Shield: Zinc Die Casting
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N
Inner box / Carton: 50PCS / 300PCS
Carton Measurement: L53*W29.5*H22.5
