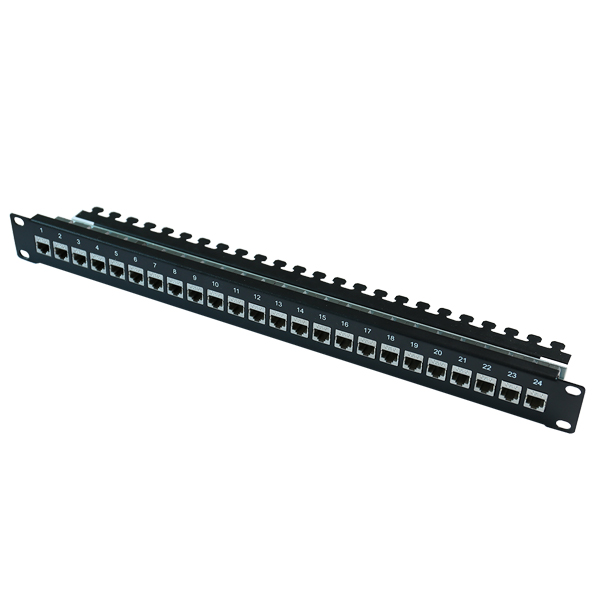

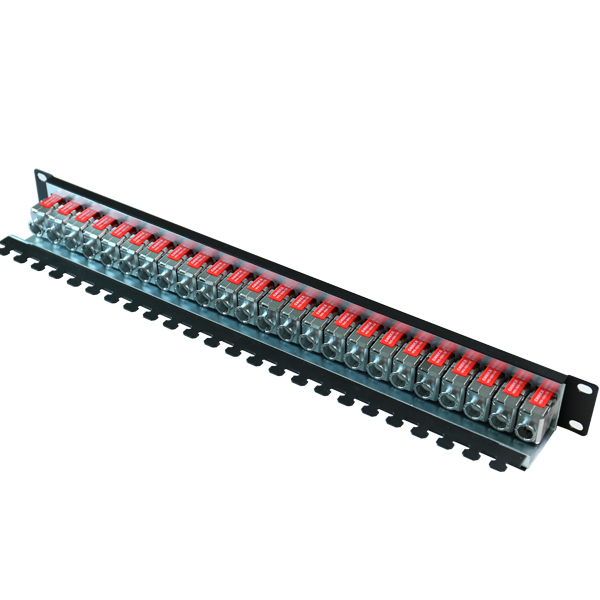

NKS-0102H-C6

Product Parameters

Technical Details
Electrical
Current Rating:1.5 Amps
Insulation Resistance: 500M ohms(Min)
Contact Resistance:20m ohms(Max)
DC Resistance: o.1 ohm MAX
Mechanical Specification
IDC Punch Down Cycle:>250 mating cycles
Rj45 Insertion Life:>750 mating cycles
IDC Accept: 22-26 AWG Solid Wire
Material
Panel: 1.5mm thickness metallic paneI/RAL 9005
Spring: Phosphor Bronze with gold-painted(3u''~50u'') over nickel-painted
IDC Contact: Phospor Bronze with Tin-painted
Plastic: PC
