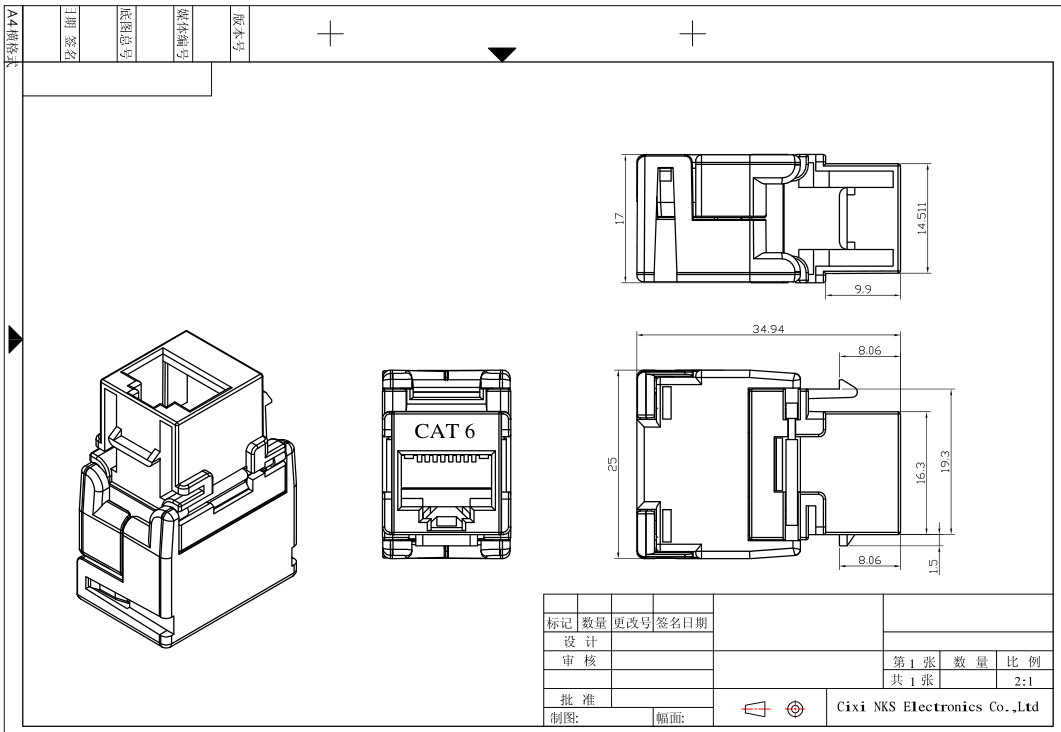

NKS-0224-C6

产品参数

Features and Benefits
1)Available in Cat 6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements
2)Housing: high temperature thermoplastic
3)Compact jack design, 8 positions and 8 conductors
4)Contact: phosphor bronze, phosphor bronze with 6 to 50u'' gold plate
5)Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6mm
6)Easy to be terminated, low attenuation loss and high return loss
7)High reliability and superrior performance
